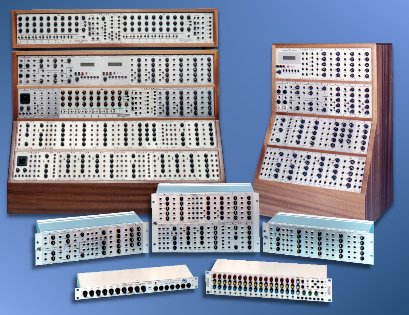

Our Integrator systems can be ordered in any configuration. We have listed samples below to give an idea of the types of systems we build as standard. We will supply anything from empty cases to the mighty Phoenix System. All of our systems include leads and manual.
 |
|

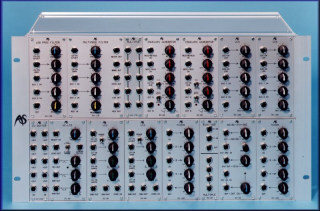

| Minisystem |
£P.O.A |
|
RS10 containing RS20, RS40, RS60, RS85,
RS95E, RS110, RS180.
|
|
| RS8000 |
£P.O.A.
|
|
Walnut cabinet containing RS20, 35, 40,
50, 3x 60, 70, 2x 85, 3x 95e, 100, 110, 120, 130, 2x 160,
165, 170,
3x 180, 215, 230, 250, 270, 280
|
|
|
|
|
|
|
|
|
Front of the RS 8000 |
|
|
|
|
|
Back of the RS 8000 view large
image |
|

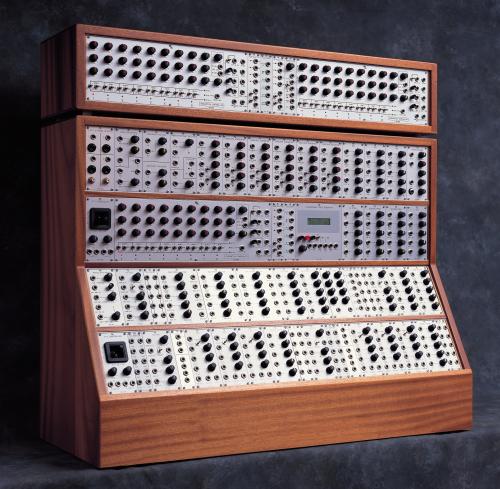

| RS8500 |
£ P.O.A.
|
|
System shown is a custom 8500 and is shown as a guide only.
Please call for current configuration. |
|
 |
|
| RS8500 |
£ P.O.A.
|
|
System shown is a custom 8500 and is shown as a guide only.
Please call for current configuration. |
|
 |
|
| view large image | |

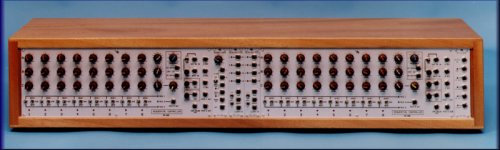

| Double Sequencer Cabinet |
£P.O.A
|
|
Optional extra for RS8500. Walnut cabinet
containing 2x RS200, 2x 150, 260, 280
|
|
 |
|
|
Modular Filter Bank
|
£P.O.A
|
|
RS10 case containing RS80, 3x RS110, RS160, RS170 |
|
|
|
|
| view large image | |
|

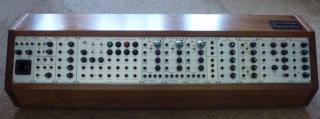

The Apprentice |
£P.O.A |
|
|
|
|
The Apprentice. |
|
| Silverback Range | |
| Spawn System |
£NO LONGER AVAILAVLE |
 Spawn preliminary details 6/8/2002
Click below for manual

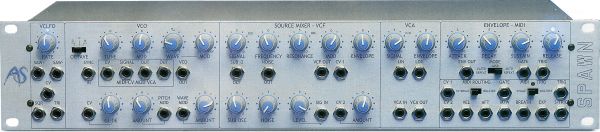

Spawn is a 2U high rack mount synthesiser with the same MIDI/CV controller as featured on the best selling Sorceror and demon keyboards. Although the synthesiser is pre patched for ease of use there are no less than 37 sockets running below the synthesiser panel for enormous flexibility and true modular routing. The front panel boasts 23 knobs and 4 switches. The system features a fully functional VCO with V.C. wave shaping, sync, std, -2 octave switching and wide mode as well as a sub OSC with -1 and -2 octave outputs available simultaneously for a full rich sound, and a analogue glide function for portamento in addition to the MIDI generated glide. A fully featured modulation VCA allows for LFO routing to the VCO and VCF to take full advantage of the MIDI controllers, VC LFO with 4 wave forms all with outputs, powerful 24db Moog type lowpass filter, fully featured envelope generator with auto and gated repeat modes, noise generator, VCA with log and lin response and of course the lower patch bay with its ins and outs and attenuators to unlock the true power of spawn and any connected synthesiser like its support module named Pod. Spawn responds to MIDI note on/off, velocity, aftertouch, mod wheel, breath and expression controllers as well as portamento these are available on sockets for routing throughout the system as well as other analogue synths the user may have making it a true MIDI/CV converter as a bonus. In addition there is a switching system to route 2 of the most commonly used controllers internally so you just take spawn out of the box and connect to a MIDI device and with no patch cords inserted the musician is ready to play classic analogue synthesiser tones. The midi routing switch routes mod wheel controller to the MIDI-CV mod VCA and expression to the VCF without the need for patching. Spawn responds to single and multiple triggering via a front panel switch. Spawn should be available by mid September and will cost £495.00. |
|
| view large image | |
|

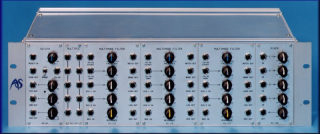

FB3 Filter Bank
|
£P.O.A
|
|
19" self contained multimode filter with LFO |
|

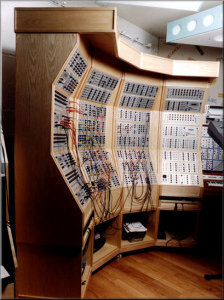

| Pheonix |
£ Custom Made
|
|
Ask for Specifications
|
|
 |
|
