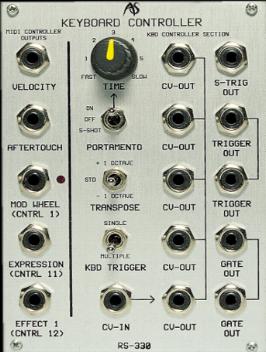

THE HEART OF OUR KEYBOARD SYSTEMS, THE RS330 GENERATES PITCH CV’S, TRIGGERS
(INCLUDING MOOG S TRIGGERS) GATES AND CONTROLLER CV’S FROM INCOMING MIDI DATA
RECEIVED AT THE DEMON OR SORCERORS MIDI IN SOCKET. SPECIFICATION: 5 X CV OUT, 1 X CV IN,2 X GATE OUT,2 X TRIGGER OUT AND 1 X S
TRIGGER OUT. SINGLE/MULTIPLE TRIGGER SWITCH, TRANSPOSE SWITCH FOR UP AND DOWN
1 OCTAVE TO EXTEND KEYBOARD RANGE. PORTAMENTO SWITCH WITH ON, OFF AND MOMENTARY
POSITIONS. PORTAMENTO TIME POT FOR LENGTH OF GLIDE. AND 5 X MIDI CONTROLLER OUTS FOR
VELOCITY, AFTERTOUCH, MODULATION (CC 1) EXPRESSION (CC 11) AND EFFECT 1 (CC 12)
|
 |
